Fusion360 Sheet Metal Not Showing

While there is not currently a way to fully omit bend lines from a 2d drawing of a sheet metal flat pattern in fusion 360 there are a number of ways to work around this limitation. In this quick tip aaron will show us how to use sketches to create sheet metal contour flanges quickly and easily while building on the existing design. After all a company s goal isn t to just create shapes in a cad program.

galvanized roof pictures gambrel roof ideas frost king wb marvin aws1845 adjustable window screen 18in high x fits 25 45 in wide french cap carpet stair installation garage attic ladder menards glass door shades inside glass roof stock photo full van vinyl wrap

Sheet Metal Flange Issues Autodesk Community Fusion 360

Solved Sheet Metal Flat Pattern Edits Disappear Autodesk Community Fusion 360

Sheet Metal Tab Is Missing In Fusion 360 Fusion 360 Autodesk Knowledge Network

Solved Sheet Metal Workspace Missing Autodesk Community Fusion 360

Solved Sheet Metal Rules Unable To Change Thicknes Autodesk Community Fusion 360

Solved Sheet Metal Cam Flat Pattern Showing Up Autodesk Community Fusion 360

In the flange command remember to go to the sheet metal workspace he selects the sketch contour as the first profile.

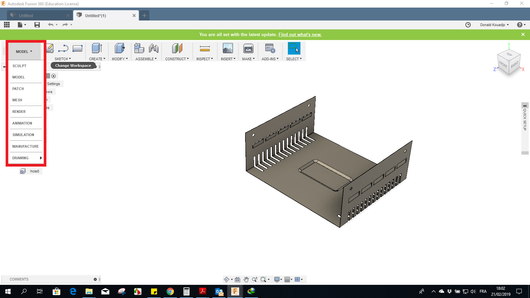

Fusion360 sheet metal not showing. Fusion 360 s sheet metal workspace includes the ability to export dxf files pretty easily. Select capture design history. Fusion 360 has released the sheet metal modeling environment. If sheet metal does not appear there enable parametric modeling mode by capturing design history.

1 create a plane above your part at some set distance. Traditional cad tools only take your sheet metal design from concept to dxf without integrating. But for the purpose of this instructable we ll show how to make this workflow work for parts that aren t actually sheet metal parts. Link to vote for improved sheet metal tools in fusion.

Not only can fusion 360 bend up sheet metal it can also take your design all the way through to manufacturing your part. In the new ui the sheet metal environment is located in the tabs above the icons. Let s show how to create sheet metal bends folds flange unfold flat pattern and more. The goal is to create an actual physical product.

Right click on the top component of the design in the browser tree. Sheet metal bend lines cannot currently be removed from a 2d drawing in fusion 360. How to omit bend lines in a sheet metal flat pattern from a 2d fusion 360 drawing.
